A 4K picture projected on a cinema screen contains an incredible 4096 x 2160 pixels (or tiny dots). That's over 8 megapixels, or four times the number of pixels. And all that cinema pictures projected 4K-look amazing, with incredible contrast and color.
The technology is in place, with broadly accepted specifications and a range of commercially available equipment that supports those specifications. An economic model is also in place, with procedures that enable distributors and exhibitors to share the cost of the digital conversion.
Why to choose Sony 4K?
Sony 4K Projectors & Roll out in India:

SDC TechMedia Limited has an exclusive collaboration with Sony Corporation, Hong Kong for the roll out Sony 4K digital projectors in India, Sri Lanka and Nepal.

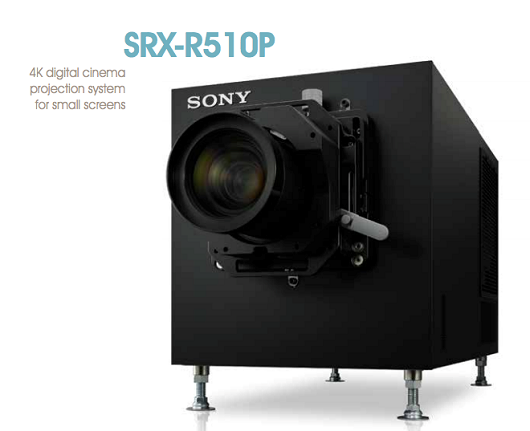

About Sony 4K:

Going to the movies has never looked better. With Sony Digital Cinema the pictures projected with detail-packed 4K qualities. The unique Sony 4K digital cinema projection system, together with Theatre Management System software, enable exhibitors to give their audiences the highest quality, most immersive and entertaining viewing experience available.

  • True 4K images with premium-quality lens and integrated media block:
    The Sony 4K projectors offers true 4K projections, with 4096 x 2160 pixels, four times the resolution of 2K and HD. The top-quality F2.5 large aperture lens employs ELD (Extra Low Dispersion) glass to create finely detailed 4K images. Unlike other projection systems that combine a 2K lens and 4K media block, it combines a set of 4K SXRD panels plus 4K lens and media block for true 4K images at the highest resolution.
  • Easy-on-the-eye 3D:
    Sony's unique dual lens system displays 3D movies at their native 2K resolutions. Left and Right eye images are projected simultaneously to achieve crisp 3D images, without the problems associated with 'triple flash' image alternation systems.
  • High contrast for lifelike images:
    The SXRD optical engine of the Sony 4K projector's delivers an extremely high contrast ratio more than 4,000:1, assuring lifelike images with sparkling highlights and deep, dark blacks.
  • Cost-effective HPM lamp array offers safe, easy lamp replacement:
    An array of four High Pressure Mercury (HPM) lamps offers high brightness, resilience and durability. Projector operation is maintained even if a lamp fails during a performance. Lamp replacement is safe and easy, while contributing to reduced overall running costs.
  • Convenient installation:
    The projector can be conveniently installed in smaller projection booths. The body structure also forms a security enclosure specifically developed to comply with the toughest physical security and anti-tamper requirements.
  • High speed content ingest:
    The Sony 4K Projectors features high network transfer speeds, assisting with streamlined show scheduling for busy theatre managers. The system has 2x Gigabit Ethernet ports as well as 2x USB 3.0 ports and 1x CRU data port slot for SATA transfers, if required.

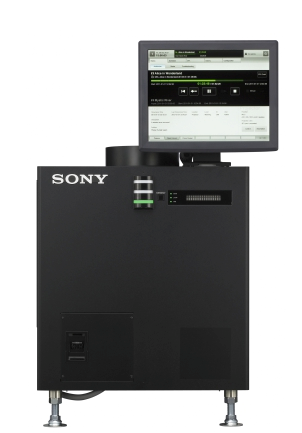

  • Larger size GUI & remote control of screen management system software:
    The large 15-inch touch screen Graphical User Interface (GUI) that makes it easy to control the projector. Remote operation of the projector is also supported via a networked PC and web browser.
  • Flexible 3D and alternative content via HDMI:
    Two standard HDMI inputs allow alternative content playback, such as live video or Blu-ray Disc playback, in both 2D and 3D.

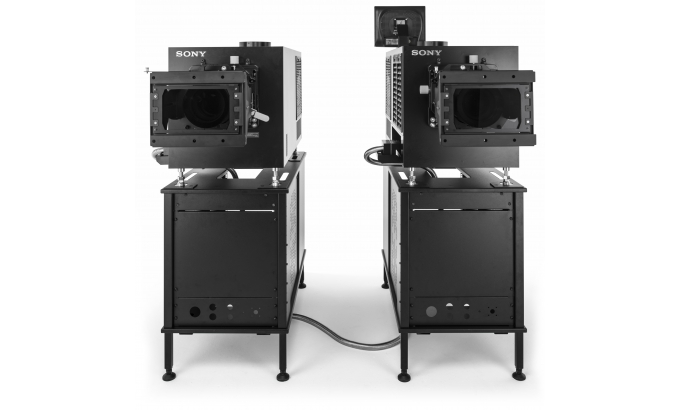

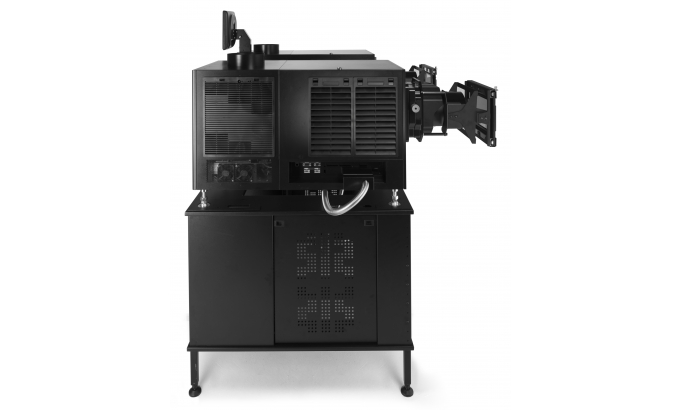

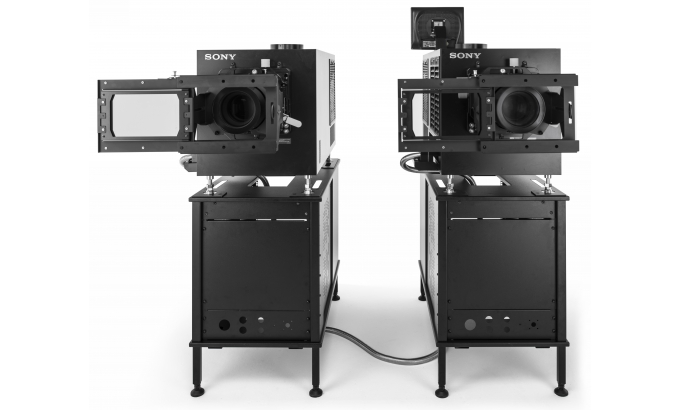

Dual 4K projection solution for larger cinema screens Overview
  • The SRX-R515DS combines two Sony SRX-R515 projectors to deliver a 30,000 lumen total output. This dual configuration delivers reference light levels for 2D presentation on screens up to 19.5m (14ft-L on white screen with 1.8 gain), or 3D on screens as large as 23m (4.5ft-L on silver screen with 2.4 gain) and is fully DCI compliant.
  • The SRX-R515DS projector pair can be operated either side-by-side or stacked vertically to suit any projection booth. Set-up is quick and easy, using the smart auto alignment system that comes included with the package.
  • Audiences are pulled right into the action with immersive 4K detail and rich, lifelike colour. Utilising the 8,000:1 contrast ratio performance of the SRX-R515 projector head, the SRX-R515DS assures best-possible image quality with deep blacks and sparkling highlights.
  • It’s quick and easy to reconfigure the SRX-R515DS between 2D and 3D presentation without requiring lens swaps. Unlike other ‘triple flash’ solutions, 3D with the SRX R515DS is smooth, natural and easy on the eye.


  • Bright, high quality 4K projection solution for larger cinema screens
    The SRX-R515DS combines two Sony SRX-R515 4K projectors that conform to the DCI specification to deliver a 30,000 lumen total output. This dual configuration delivers reference light levels for 2D presentation on screens up to 19.5m (14ft-L on white screen with 1.8 gain), or 3D on screens as large as 23m (4.5ft-L on silver screen with 2.4 gain).
  • True 4K images for the highest on-screen picture quality
    The SRX-R515DS projector pair delivers true 4K projection conforming to DCI specification, with 4096 x 2160 pixels - four times the resolution of 2K and Full HD. Each projector's large aperture F2.5 lens is made from ELD (Extra Low Dispersion) glass to ensure the highest quality 4K images.
  • Quick, easy set-up with auto alignment system
    The smart auto alignment system that comes included ensures accurately calibrated images across the whole cinema screen. Alignment can also be performed easily at any time during routine maintenance to ensure optimal performance.
  • Quick, easy configuration for 2D or smooth, easy-on-the-eye 3D presentation
    Reconfiguration for 2D or 3D presentation between screenings is quick and easy, requiring only the addition of static 3D filters to each projector and no lens swaps. Unlike other ‘triple flash’ solutions, Left and Right eye images are projected continuously for smooth, natural 3D that's easy on the eye.
  • High contrast for lifelike images
    Each projector's optical engine can deliver extremely high contrast (up to average 8000:1) images, giving more lifelike pictures with sparkling highlights and dark blacks.
  • Cost effective HPM multi-lamp technology for high reliability and safe, easy lamp replacement
    Both projectors feature an innovative HPM multi-lamp array that delivers excellent brightness and image quality with lowered running costs. The system continues operating at slightly reduced light levels, even if one lamp source fails unexpectedly. Replacement of individual lamp cartridges is quick and easy, requiring no protective clothing or special safety measures.
  • Flexible, secure installation
    Quick ingest with high network transfer speeds via USB 3.0 assists theatre managers with flexible show scheduling. Storage capacity is expandable from 4TB up to a maximum 8TB.
  • Larger size GUI
    The large 15-inch Graphical User Interface (GUI) allows easy projector set-up, content management and creation of complete show schedules.
  • Integrated cinema server and media block with Dolby Atmos support
    Included with the system, the XCT-S10 cinema server and XCT-M10 integrated media block (IMB) support optional Dolby Atmos for a thrillingly immersive surround sound experience.

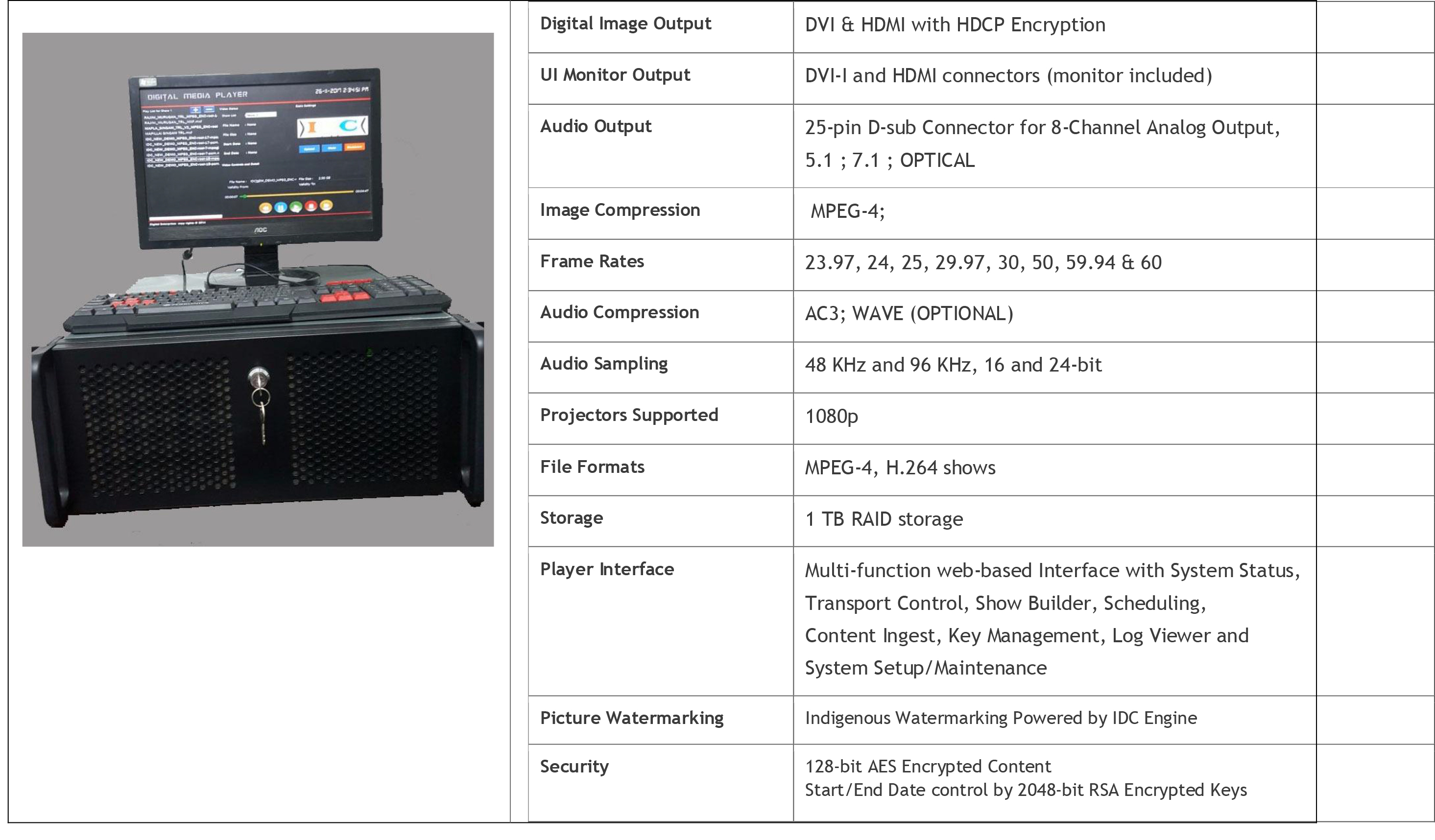

Server Specifications
